Inside dimension

20700×5000×5000   mm (L×W×H)

Outside dimension

20840×9140×5600   mm (L×W×H)

Basement

Without basement, exhaust from both sides wall panel.

Front door

Folding door,   4-folds, 4000×4500mm(W×H), galvanized steel frame, powdered and paint with   blue color, with handle on both sides, EPS inside, color: white.

Emergency door

4 units, 800×2000 mm (WXH), color: white, with air cut   off system. Safety Warning light display at each personnel door, with Emergency   Lighting at each personnel door

Room body

Profiled bar   beams in the roof, to strengthen the room body; wall panel thickness:70mm, width:1150mm, tongue and groove structure, 0.476mm color steel with   polystyrene(EPS) insulation inside, color: white. With Fire alarm Strobe light inside.

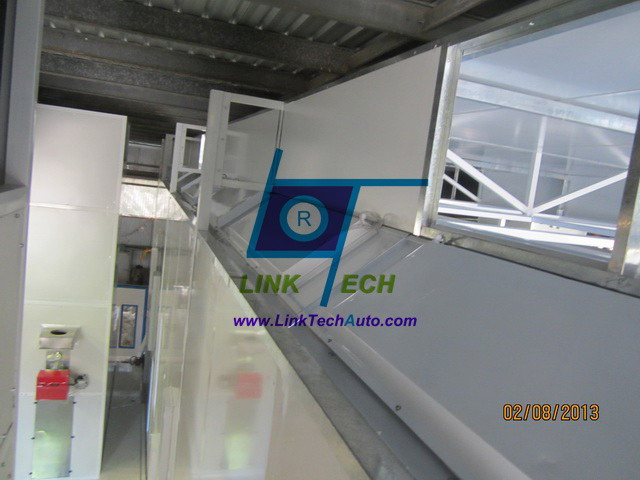

Light system

Ceiling Lights:   24Units×4Pcs=96Pcs×36W, side Lights: 28Units×4Pcs=112Pcs×36W, with electronic ballasts, up and down interleaving installation, open from outside.

Generator cabinet

Intake air from side upper direction, exhaust air from back upper   direction, quadrate steel frame, outside is white coated steel, powdered and   painted, filled with heat preservation material in the middle, color: white

Intake and exhaust

System

Inlet: 4×7.5KW turbo fan, direct drive, air capacity: 25000m3/h/fan, with 5m intake stacks. (CE motor, but not Siemens brand) (with electric damper)

Outlet: 4×7.5KW turbo fan, direct drive, air capacity: 25000m3/h/fan, with 5m exhaust stacks. (CE motor, but not Siemens brand) (with electric damper)

Heating system

Riello FS20 gas burner, stainless heat exchanger, pneumatic damper for   spraying and baking cycle, heat productive 800000Kcal/h totally, Max temp: 80℃, 5m stainless steel, chimney.

Purification system

Pre-filter,   high efficiency filter (ceiling filter), fiberglass filter, activated carbon   filter (pocket)

Roof

50mm thick EPS heat preservation panels.

Control system

Spraying, heating   spraying, baking, baking time, lighting switch, failure indicator, thermostat , power supply switch, emergency stop, time meter, ampere meter,   voltmeter, temperature limiter, pressure gauge, with inverters, delta start.   (CE components, but not Siemens brand)

Total power

68KW (1x240V, 3x415V, 50HZ)

Note

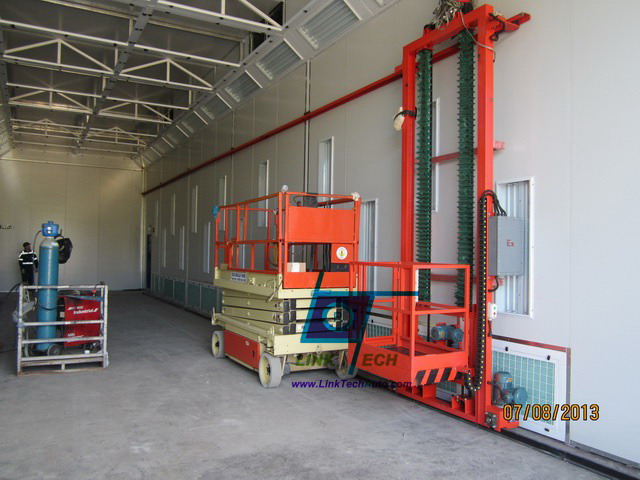

With one set electric lift inside the booth (one unit on each side)
