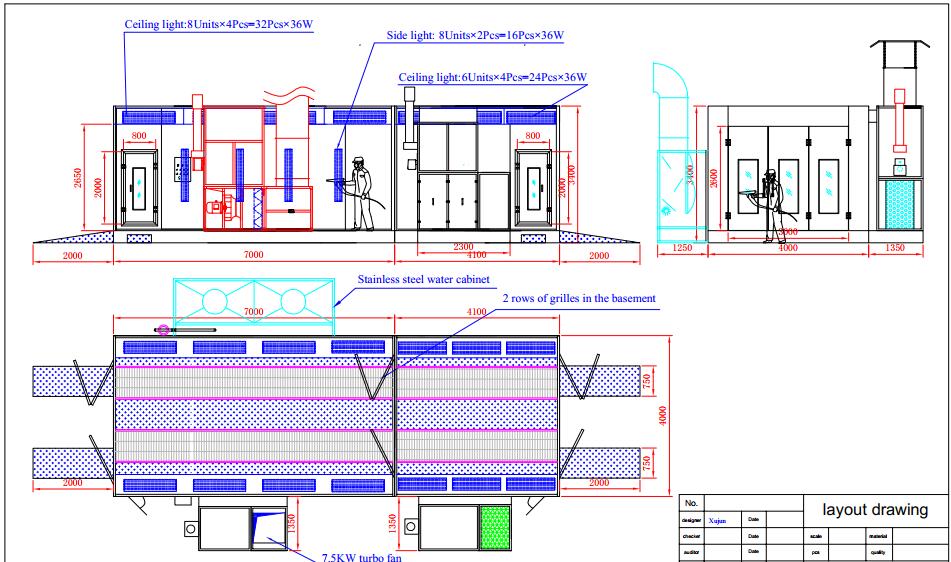

Spray booth specification:
Item | Detailed Specification | |||||||
Inside dimension | 6900×3900×2650 mm (L×W×H) | |||||||
Outside dimension | 7000×6600×3400 mm (L×W×H) | |||||||
Front door | Folding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, colour: Blue | |||||||
Emergency door | 1 units, 800×2000mm (W×H), colour: white, aluminium alloy window frame | |||||||
Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 2 rows grilles made by flat bar and twisted steel, galvanized. 3 rows of indented plates, 2 ramps, 750×2000mm/pc. | |||||||
Wall panel | Thickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick EPS inside, colour: white. | |||||||
Light | Ceiling Lights: 8Units×4Pcs=32Pcs×36W, side Lights: 8Units×2Pcs=16Pcs×36W, with electronic ballasts, horizontally set, lighting boxes are powered coated. | |||||||
Generator cabinet | Inlet from side upper, outlet from back upper, galvanized steel frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. | |||||||
Intake and Exhaust system | Inlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. | |||||||
Outlet: with water curtain exhaust system. | ||||||||
Heating system | RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000kcal/h, maximum temperature: 80 degree. | |||||||
Purification system | Pre-filter, ceiling filter, fibreglass filter, water curtain filter. | |||||||
Roof | Galvanized steel | |||||||
Control system | Spraying, lighting switch, power supply switch, emergency stop, hour meter. | |||||||
Total power | 9.5KW (Power supply 3*380V, 50HZ) |

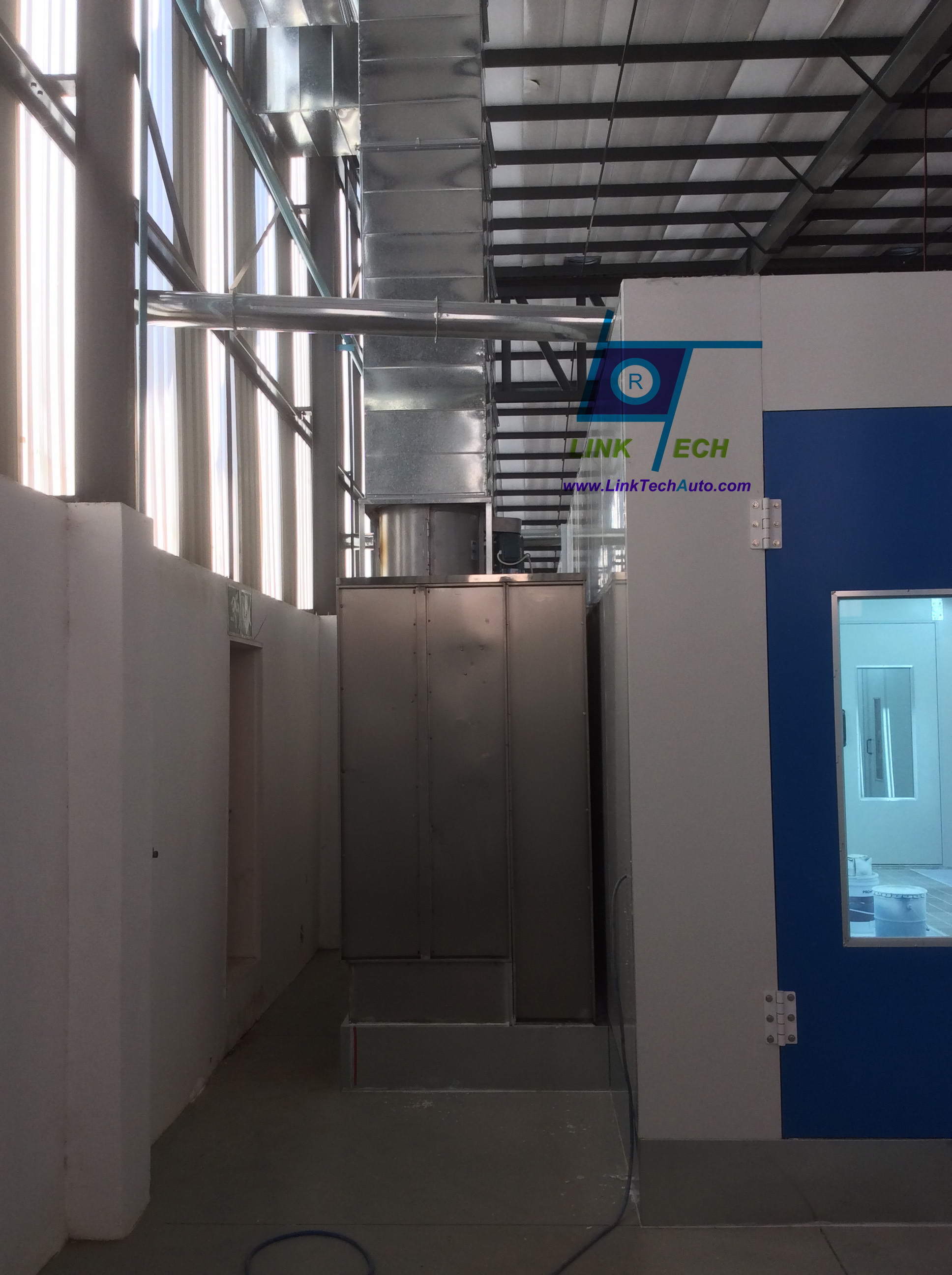

Water curtain cabinet specification:
Item | Detailed Specification | |||||||
Outside dimension | 4000×1250×2300 mm (L×W×H) | |||||||
Cabinet | 1.5mm stainless steel cabinet. | |||||||
Exhaust system | Exhaust: 2 units, axial fan, in total 2×2.2KW, model: SF7G-4, air capacity: 18500m3 /h. | |||||||
Ducts | Exhaust ducts and elbow. | |||||||
Purification system | Water curtain filter. | |||||||
Water panel | 1.5mm stainless steel water box, 0.8mm water curtain panel. | |||||||
Cycle system | Water pump G50-12.5A, capacity: 21m3/h, lifting 10m, power 1.5KW, PVC water pipe | |||||||
Control system | Normal relay switch, fan switch. | |||||||
Total power | 6KW(power supply:1×220V, 3×380V,50HZ) |
Drying booth specification:
Item | Detailed Specification | |||||||
Inside dimension | 4000×3900×2650 mm (L×W×H) | |||||||
Outside dimension | 4100×5350×3400 mm (L×W×H) | |||||||
Front door (2 sets) | Folding door, 3folds, 3000×2600 mm (W×H), one on the front side (share with the spray booth, as the lighting box, the height less than 2.6m a little), another one on the back side, without frame, aluminium alloy window frame, colour: Blue | |||||||
Emergency door | 1 units, 800×2000mm (W×H), colour: white, aluminium alloy window frame | |||||||
Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 2 rows grilles made by flat bar and twisted steel, galvanized. 3 rows of indented plates, 2 ramps, 750×2000mm/pc. | |||||||
Wall panel | Thickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick EPS inside, colour: white. | |||||||
Light | Ceiling Lights: 6Units×4Pcs=24Pcs×36W, no side lights, with electronic ballasts, lighting boxes are powered coated. | |||||||
Generator cabinet | Inlet from side upper, galvanized steel frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle. | |||||||
Intake and Exhaust system | Inlet: 1×5.5KW turbo fan, power: 5.5KW, air capacity: 18000m3/h. | |||||||
Outlet: without | ||||||||
Heating system | RIELLO G20 diesel burner, stainless steel heat exchanger, Max. heating productivity: 200000kcal/h, maximum temperature: 80 degree | |||||||
Purification system | Pre-filter, ceiling filter, fibreglass filter. | |||||||
Roof | Galvanized steel | |||||||
Control system | Baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller. | |||||||
Total power | 6.5KW (Power supply 3*380V, 50HZ) |
