Item	Detailed Specification

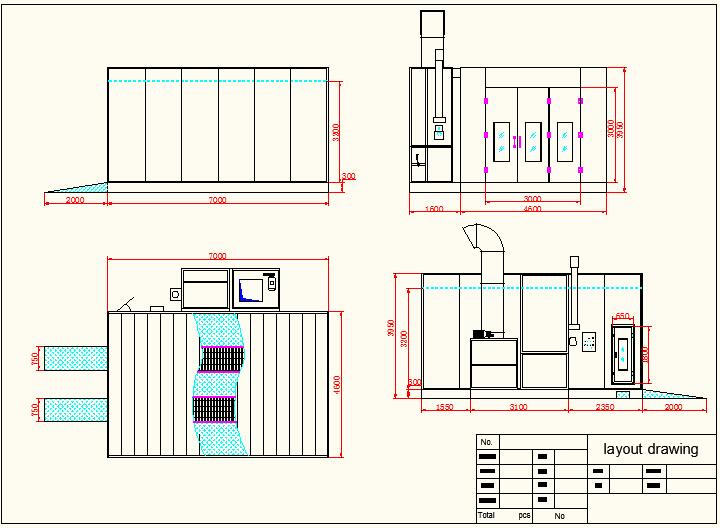

Inside dimension	6900×4500×3200 mm (L×W×H)
Outside dimension	7000×6200×3950mm (L×W×H)
Front door	Folding door, 3 folds, 3000×3000 mm (W×H),   without frame, aluminium alloy window frame, blue colour, door head and two   batten on both sides white colour. With two handles outside.
Emergency door	1 units, 650×1800mm (W×H), colour: white. Step   silver color.
Basement	Galvanized steel assemble, 300mm high, quadrate   steel support, with one extra supportor, 2 rows grilles made by flat bar and   twisted steel, galvanized, 3 rows indented plate, silver colour, 2 ramps,   750×2000mm/pc, silver colour.
Wall panel	Thickness: 50mm, width:1150mm, tongue and   groove structure, 0.426mm colour steel with EPS inside, colour: white.
Light	Ceiling Lights: 8Units×4Pcs=32Pcs×36W, side   lights: 8Units×2Pcs=16Pcs×18W, with LED, lighting boxes are powered coated,   illumination ≥1000LUX
Generator cabinet	Intake from back upper, exhaust from rear   upper, galvanized steel frame; blue machine-made panel covered, filled with   heat preservation material inside.
Intake and Exhaust system	Inlet:1×7.5KW centrifugal fan, with belt drive,   TAE500H, air capacity for each fan: 25000m3/h.
	Outlet: 1×7.5KW centrifugal fan,   with belt drive, TAE500H, air capacity for each fan: 25000m3/h. Manual   damper, 4m ducts, 1 pcs 900 bend, 1 pcs 300 bend.
Heating system	Italy RIELLO G20 diesel burner, stainless steel   heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max.   heating productivity: 200000kcal/h, max temperature: 80℃, 4pcs chimney, 1 pcs bend.
Purification system	Pre-filter, ceiling filter, fibreglass filter,   activated carbon filter.
Roof	Galvanized steel
Control system	Spraying, heat spraying, baking, time setting,   lighting switch, failure indicator, thermostat, power supply switch,   emergency stop, temperature limiter, all motors is normal start.
Total power	17.5KW (Power supply  1×220V, 3×380V, 50HZ)
