| Item | Detailed Specification |

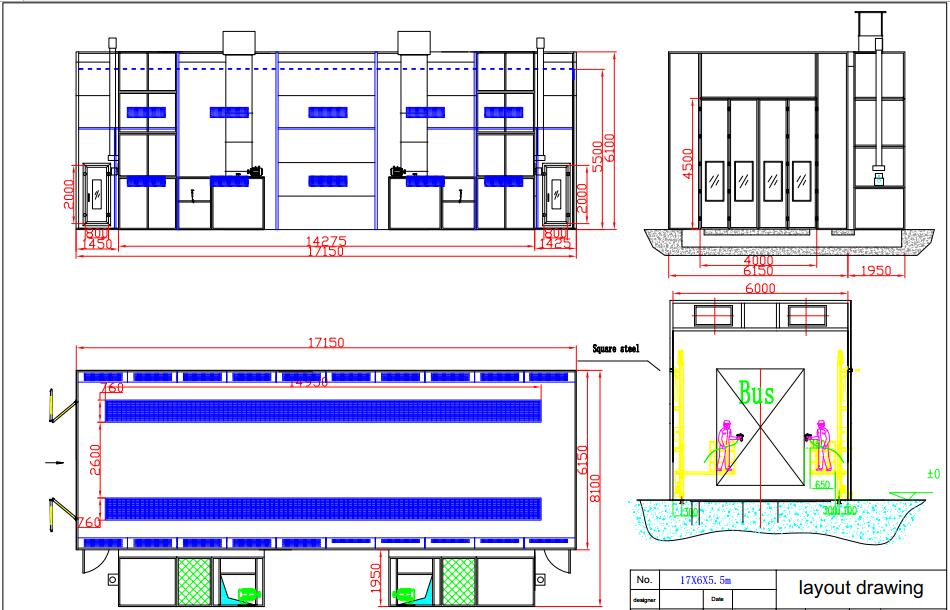

| Inside dimension | 17000×6000×5500 mm (L×W×H) |
| Outside dimension | 17150×8100×6100mm (L×W×H) |
| Front door | Folding door, 4 folds, 4000×4500 mm (W×H), galvanized steel frame, cold plate powder coated window frame, white colour, 8mm laminated glass, without hinge, supplied by customer, door frame not exceed 3cm. |
| Emergency door | 2 units, 800×2000mm (W×H), colour: white, 8mm laminated glass, supplied by customer. |
| Basement | No steel basement, 2 lines pits in the ground for the exhaust, size of each pit: 14950×760mm(L×W), with galvanized twisted grilles above. |
| Wall panel | Profiled bar beams in the roof to strengthen the room body, thickness: 75mm, width:1150mm, tongue and groove structure, 0.6mm colour steel with rock wool inside, colour: white, rockwool density: 80Kg/m3 |
| Light | Ceiling Lights: 20Units×4Pcs=80Pcs×16W, without angle, flat type, side lights: 20Units×4Pcs=80Pcs×16W, with LED, lighting boxes are powered coated, 800lux-1100lux, color temp 6500L, white color, waterproof light, IP65 certification. |

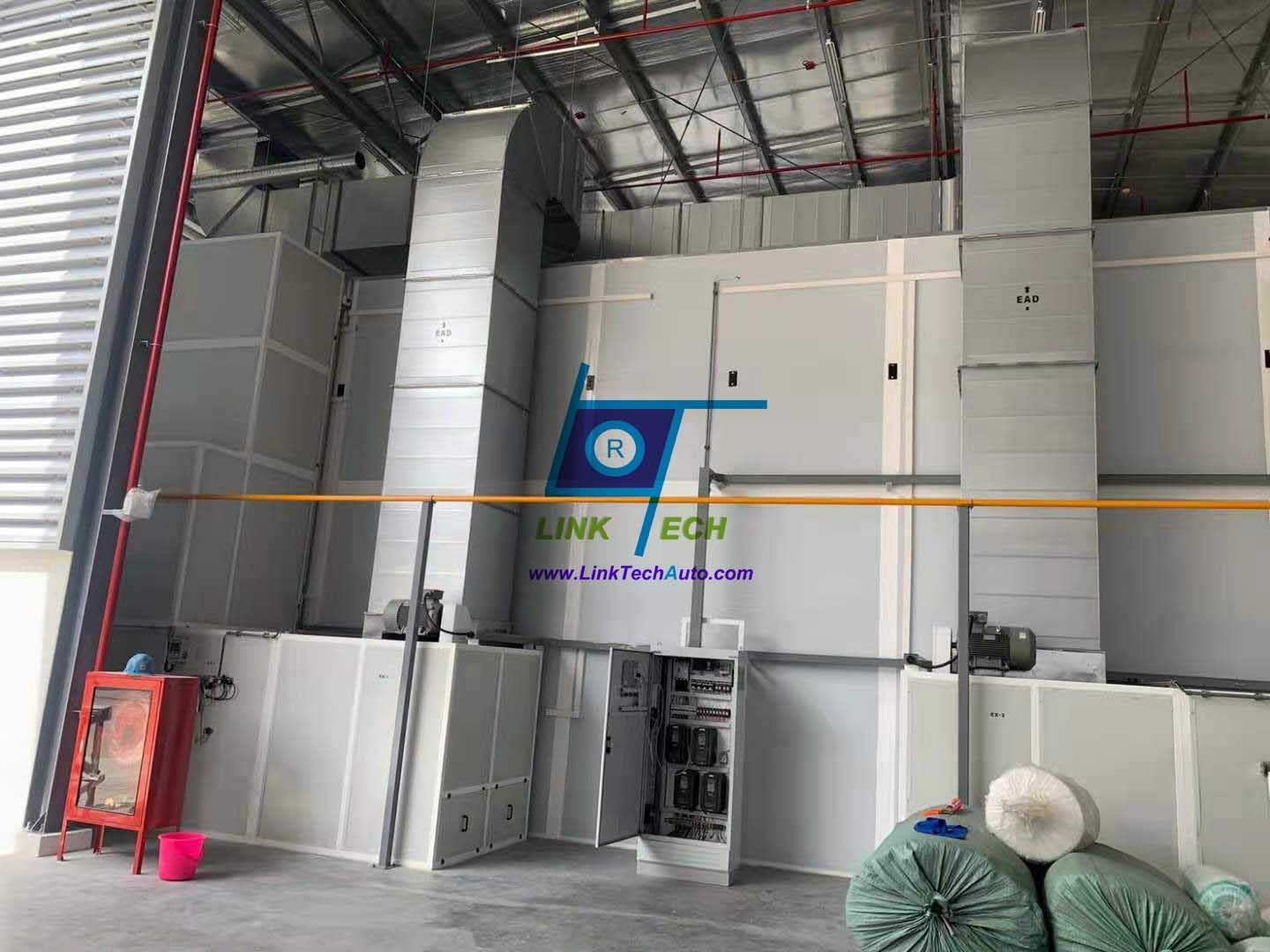

| Generator cabinet | Intake from side upper, exhaust from rear upper, quadrate steel frame; white machine-made panel covered, filled with heat preservation material inside. |
| Intake and Exhaust system | Inlet: 2×15KW centrifugal fan (Shuangju), belt drive, air capacity for each fan: 45000m3/h, Siemens motor. |
| Outlet: 2×15KW centrifugal fan (Shuangju), belt drive, air capacity for each fan: 45000m3/h. Siemens motor. |

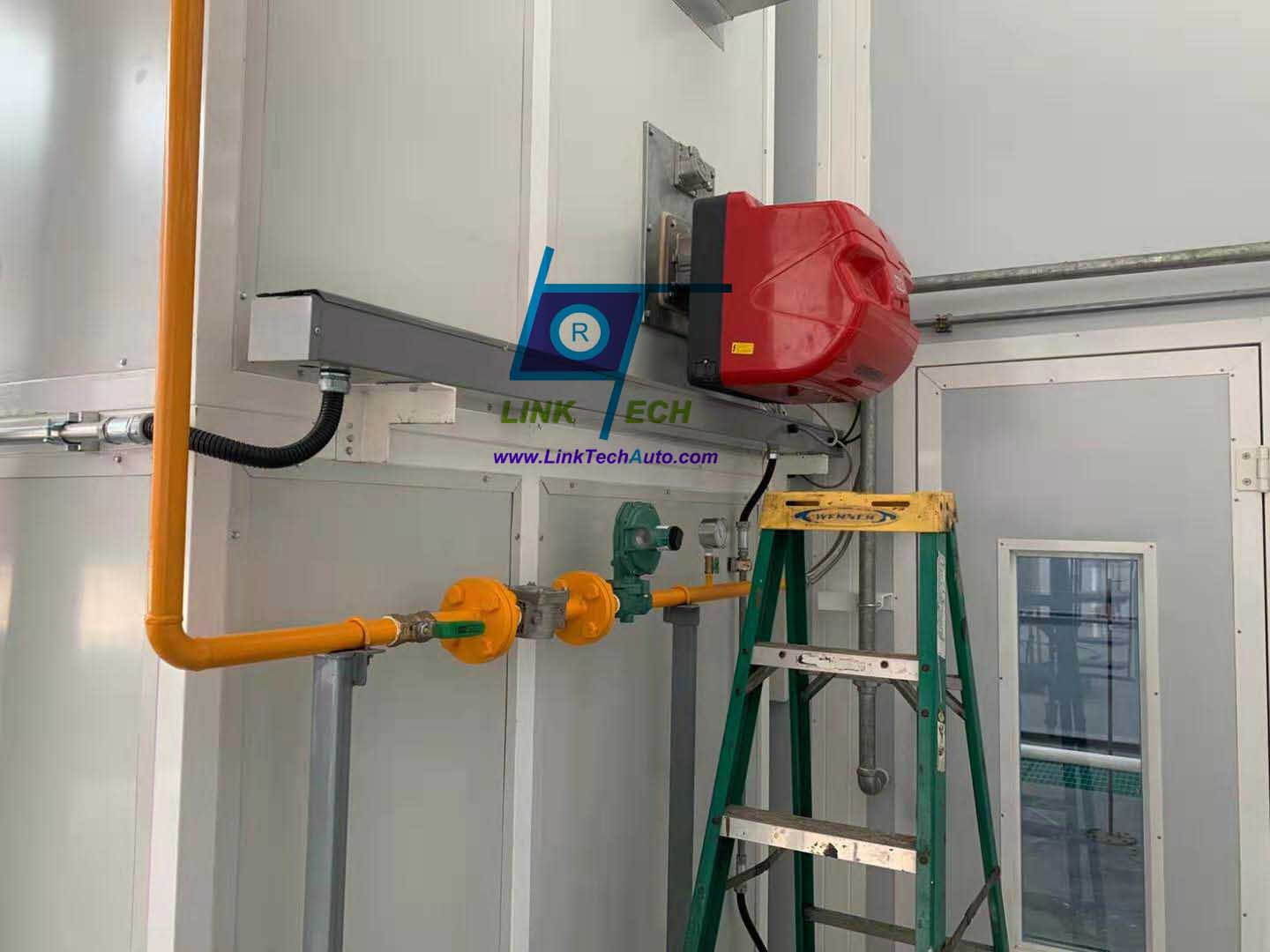

| Heating system | 2 sets Italy RIELLO RS44/1 gas burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 380000kcal/h for each. Max temperature: 80℃. |
| Purification system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter (pocket type) (with one set extra filter) |
| Roof | Rock wool panel. |
| Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limiter, pressure gauge, all motors is reduced voltage starting. With inverter, Mitsubishi PLC control system. |

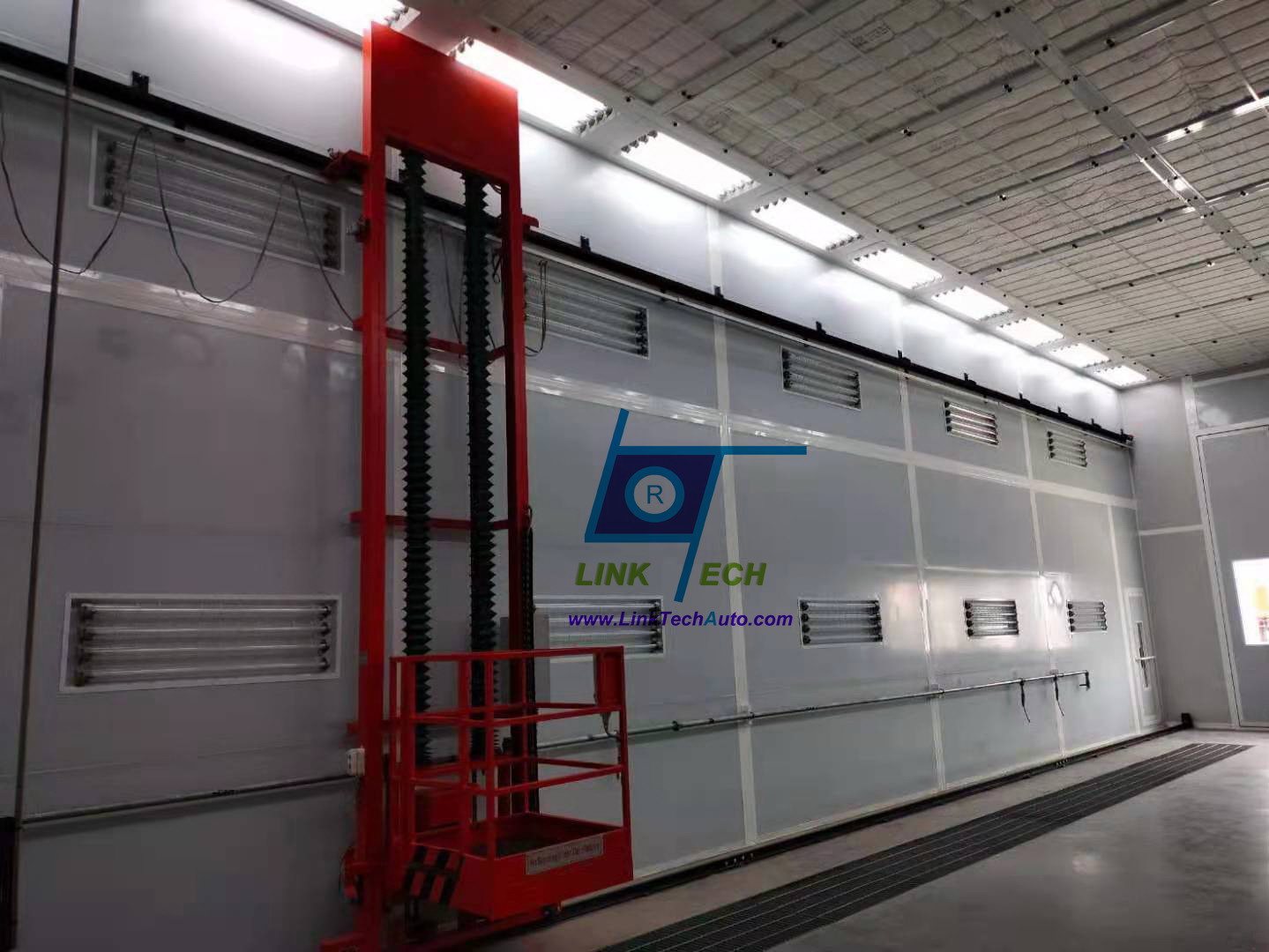

| Note | With 2 sets 3D lift on both sides, bearing Japan brand, lifting height 4m. |
| Total power | 69KW (Power supply 1×220V, 3×380V, 50HZ) |
