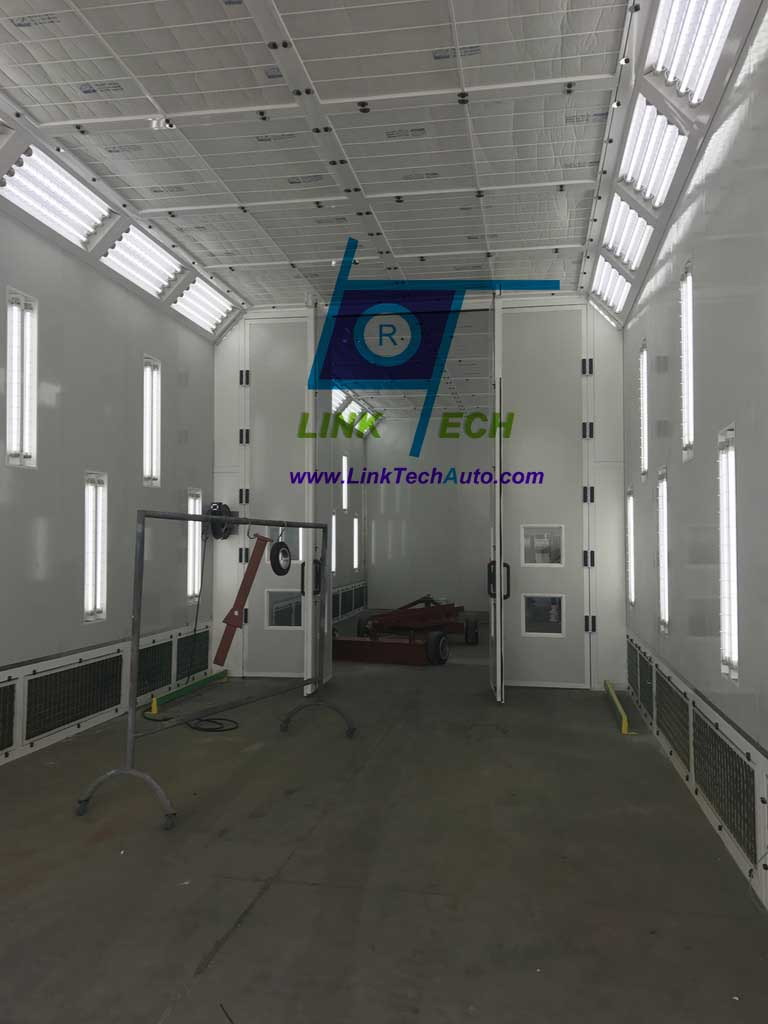

Bus paint spray booth

Bus paint spray booth

PRODUCT DETAILS

Item


Detailed Specification

Inside dimension19000×5000×4600 mm (L×W×H)
Outside dimension19150×7940×5200 mm (L×W×H)

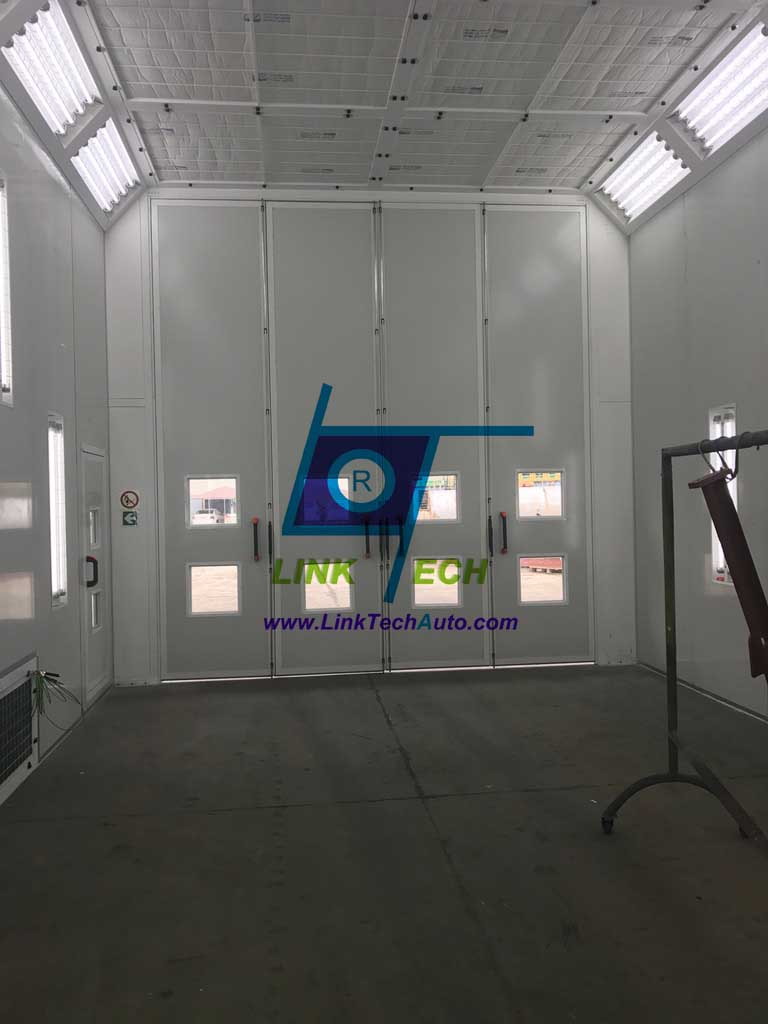

Front door2 sets, folding door, 4200×4500 mm (W×H),   colour: white, window 450×450mm, one door in the middle as drawing showed,   but size 4200×4100 mm (W×H).
Emergency door2 units, 800×2000mm (W×H), colour: white,   aluminium alloy window frame, window 300×300mm.
BasementWithout, exhaust from both sides wall.
Wall panelThickness: 70mm, width:1150mm, tongue and   groove structure, 0.476mm colour steel with 70mm thick EPS inside, colour:   white.

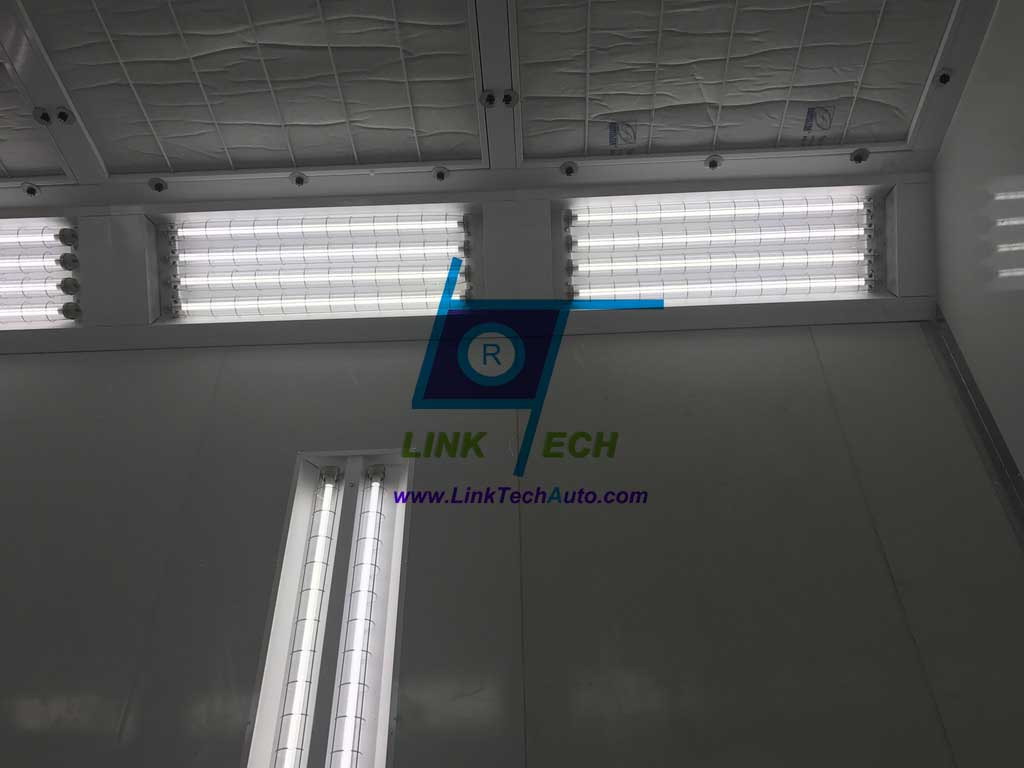

LightCeiling Lights: 24Units×4Pcs=96Pcs×16W, side   Lights: 28Units×2Pcs=56Pcs×16W, with LED lights, anti-explosion, lighting   boxes are powered coated.
Generator cabinetInlet from side upper, outlet from back upper,   galvanized steel frame; white coated steel outside, galvanized steel inside,   filled with heat preservation material in the middle.
Intake and Exhaust systemInlet: 4×7.5KW turbo fan, power: 7.5KW for   each, air capacity: 85000m3/h.
Outlet: 4×7.5KW turbo fan, power:   7.5KW for each, air capacity: 85000m3/h. With manual damper. Fan impeller   spark proof.
Heating systemNo.
Purification systemPre-filter, ceiling filter, fibreglass filter,   active carbon filter bag.
Roof50mm EPS wall panel, 0.376 steel.
Control systemSpraying, lighting switch, failure indicator,   temperature controller, power supply switch, emergency stop.
Total power68KW (Power supply 3*380V, 50HZ)

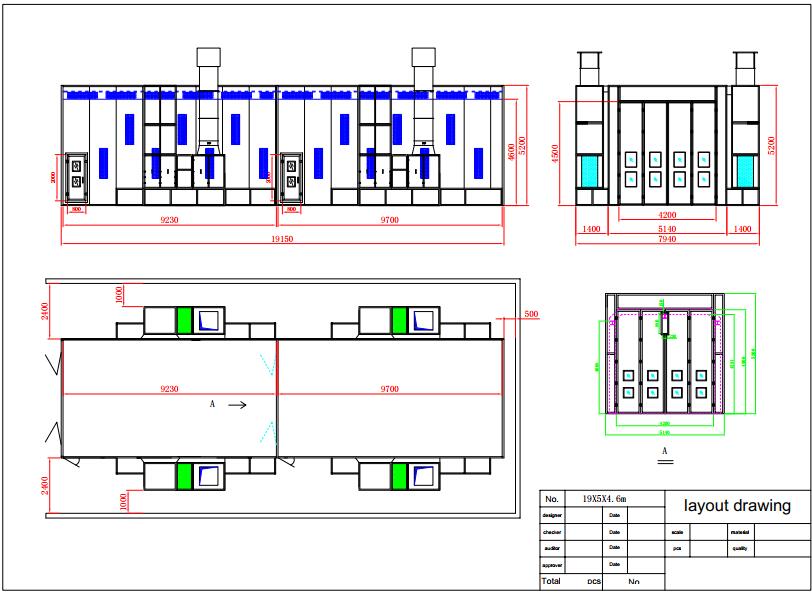

Drawing
