Item	Detailed Specification

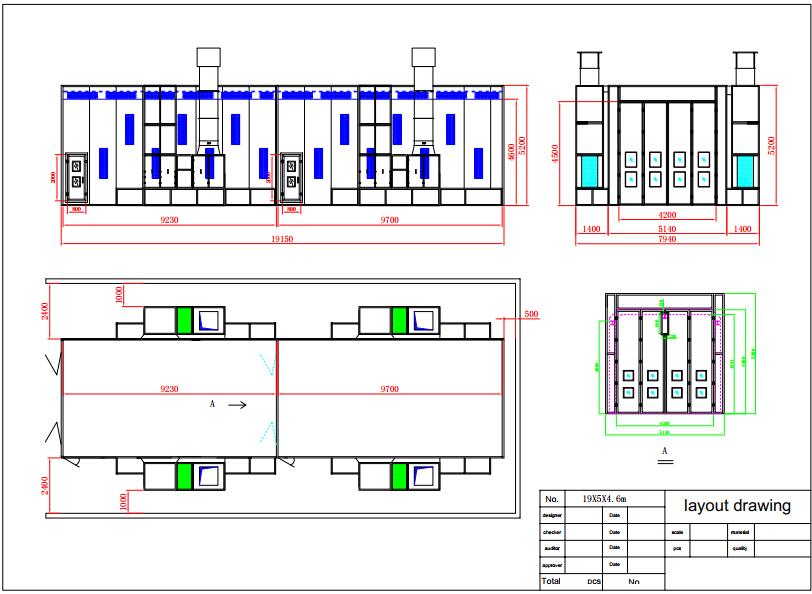

Inside dimension	19000×5000×4600 mm (L×W×H)
Outside dimension	19150×7940×5200 mm (L×W×H)
Front door	2 sets, folding door, 4200×4500 mm (W×H),   colour: white, window 450×450mm, one door in the middle as drawing showed,   but size 4200×4100 mm (W×H).
Emergency door	2 units, 800×2000mm (W×H), colour: white,   aluminium alloy window frame, window 300×300mm.
Basement	Without, exhaust from both sides wall.
Wall panel	Thickness: 70mm, width:1150mm, tongue and   groove structure, 0.476mm colour steel with 70mm thick EPS inside, colour:   white.

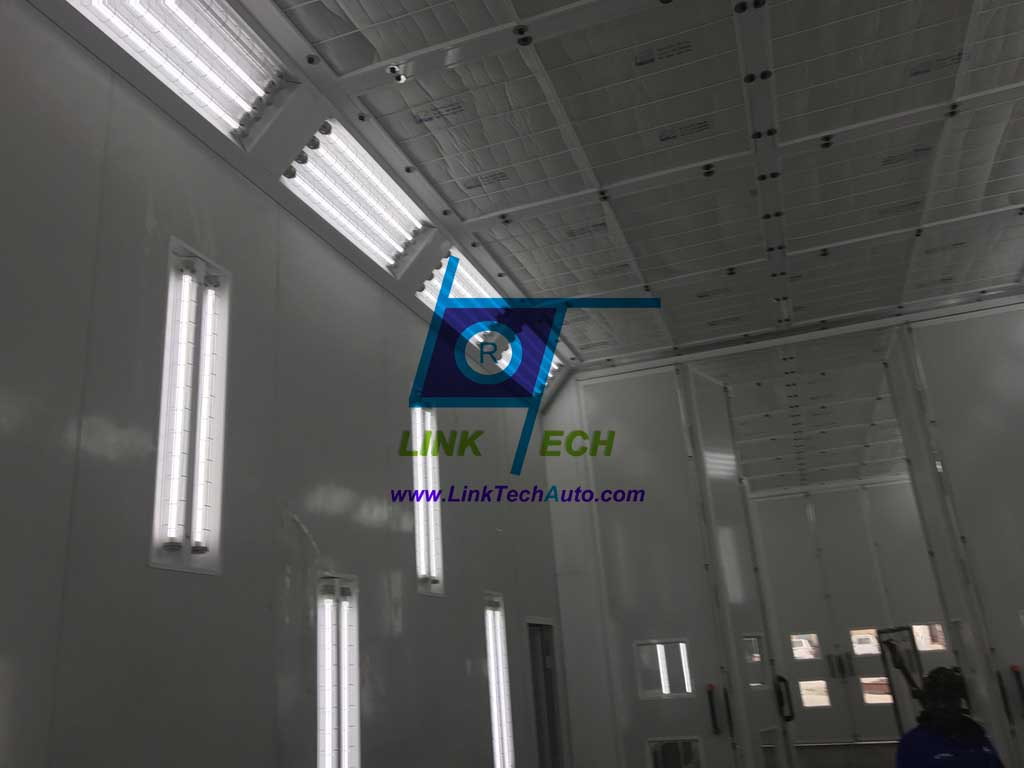

Light	Ceiling Lights: 24Units×4Pcs=96Pcs×16W, side   Lights: 28Units×2Pcs=56Pcs×16W, with LED lights, anti-explosion, lighting   boxes are powered coated.
Generator cabinet	Inlet from side upper, outlet from back upper,   galvanized steel frame; white coated steel outside, galvanized steel inside,   filled with heat preservation material in the middle.
Intake and Exhaust system	Inlet: 4×7.5KW turbo fan, power: 7.5KW for   each, air capacity: 85000m3/h.
	Outlet: 4×7.5KW turbo fan, power:   7.5KW for each, air capacity: 85000m3/h. With manual damper. Fan impeller   spark proof.
Heating system	No.
Purification system	Pre-filter, ceiling filter, fibreglass filter,   active carbon filter bag.
Roof	50mm EPS wall panel, 0.376 steel.
Control system	Spraying, lighting switch, failure indicator,   temperature controller, power supply switch, emergency stop.
Total power	68KW (Power supply 3*380V, 50HZ)
