| Item | Detailed Specification |
| Inside dimension | 6300×3450×2650 mm (L×W×H) |
| Outside dimension | 7550×3550×3100mm (L×W×H) |
| Plenum dimension | 6300×3450×450 mm (L×W×H) |
| Steel basement | Steel basement, 300mm high, full grilles, twisted steel grilles, painted, 2 ramps, size of each: 2000×750mm(L×W) |

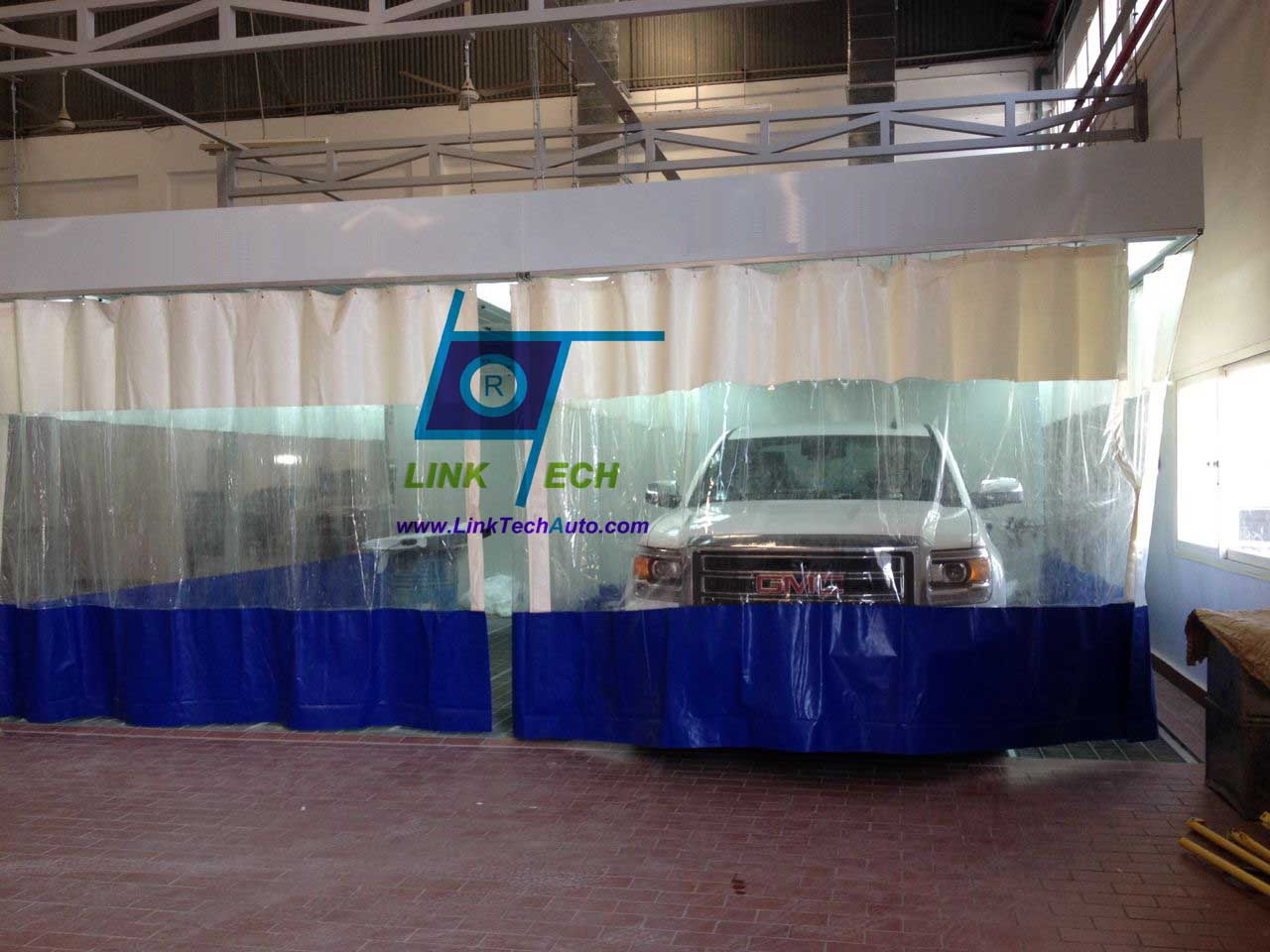

| Room body | Back side 50mm EPS wall panel, the other sides PVC curtain. |
| Light | Ceiling Lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, lighting boxes are powered coated. |
| Generator cabinet | Exhaust from back side, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside. |
| Intake and Exhaust system | 1×5.5KW turbo fan, air capacity: 18000m3/h, with electric damper. |
| Purification system | Pre-filter, ceiling filter, fibreglass filter. |
| Roof | Galvanized steel |
| Control system | Fan switch, lighting switch, emergency stop. |
| Installs way | Hooked from roof by steel cable or supported by steel column. |
| Total power | 6.7KW (Power supply 1×220V, 3×380V, 50HZ) |
