Preparation bay for car painting

Preparation bay for car painting

PRODUCT DETAILS

ItemDetailed Specification

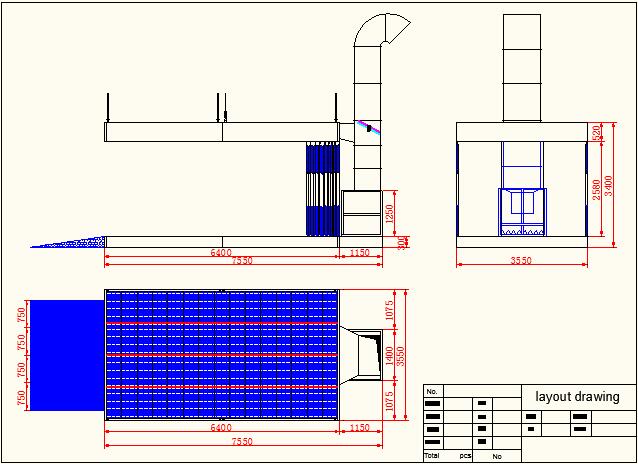

Inside dimension6300×3450×2650 mm (L×W×H)
Outside dimension7550×3550×3100mm (L×W×H)
Plenum dimension6300×3450×450 mm (L×W×H)
Steel basementSteel basement, 300mm high, full grilles,   twisted steel grilles, painted, 4 ramps, size of each: 2000×750mm(L×W)
Room bodyBack side 50mm EPS wall panel, the other sides   PVC curtain, white+transparent+blue
LightCeiling Lights: 8Units×4Pcs=32Pcs×16W, with   LED, lighting boxes are powered coated.
Generator cabinetExhaust from back side, galvanized steel frame;   white machine-made panel covered, filled with heat preservation material   inside.
Intake   and Exhaust system1×5.5KW turbo fan, air capacity: 18000m3/h,   with electric damper.
Purification systemPre-filter, ceiling filter, fibreglass filter.
RoofGalvanized steel
Control systemFan switch, lighting switch, emergency stop.
Installs wayHooked from roof by steel cable or supported by   steel column.
Total power6KW (Power supply  1×220V, 3×380V, 50HZ)

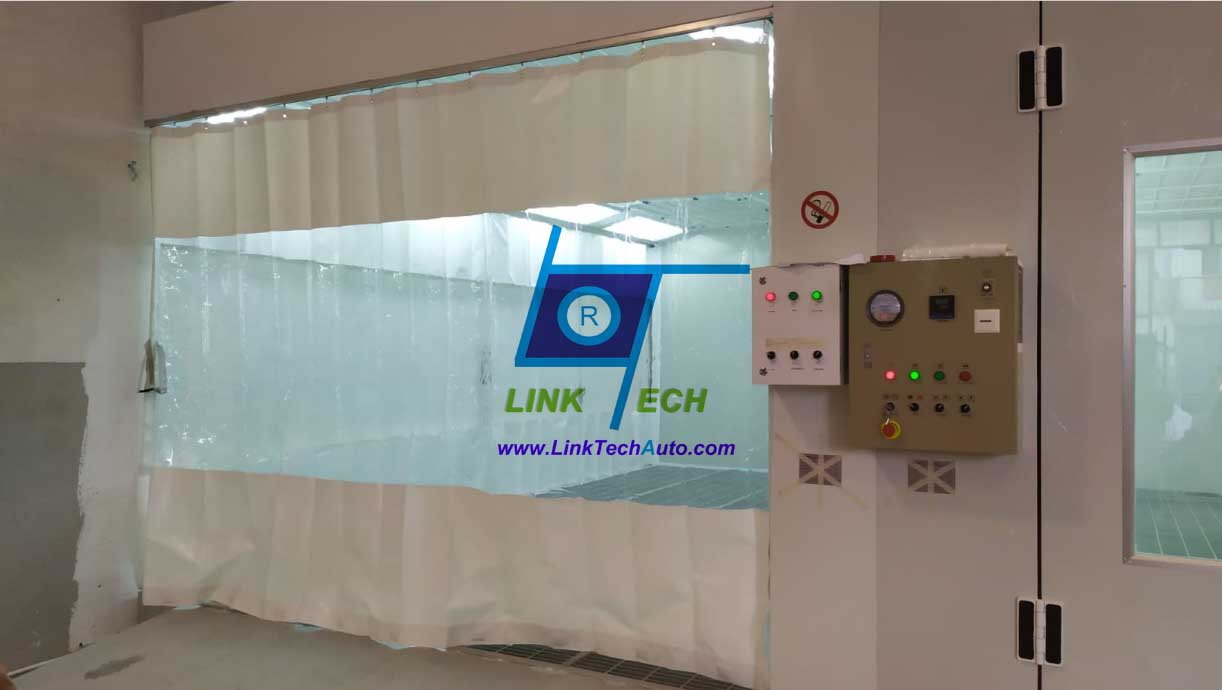

prep stationIMG-20200629-WA0(07-07-17-15-11)(2)
