Item	Detailed Specification

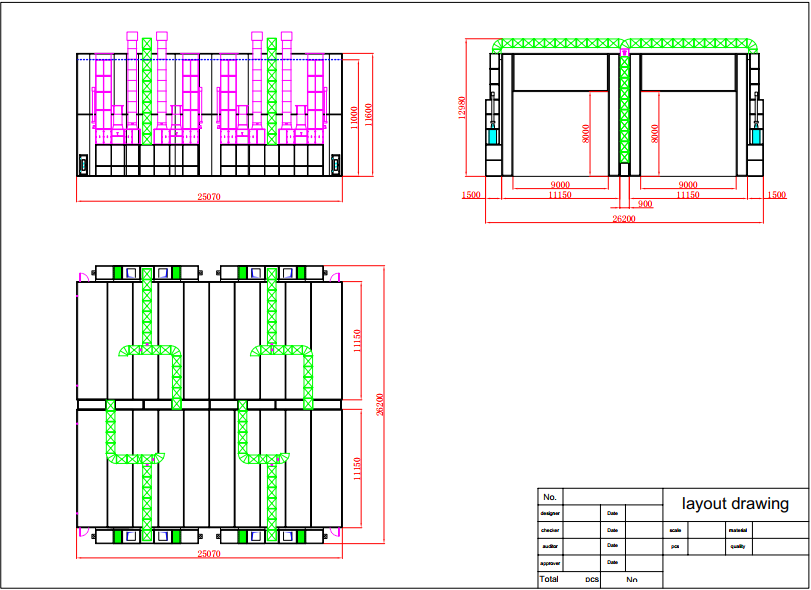

Inside dimension	24900×11000×11000 mm (L×W×H)
Outside dimension	25070×13550×11600 mm   (L×W×H)
Front door	Door supplied by client, open size 9000×8000 mm   (W×H).
Emergency door	4 units, 800×2000mm (W×H), colour: white,   tempered glass.
Basement	Without, exhaust from both sides wall.
Wall panel	Thickness: 70mm, width:1150mm, tongue and   groove structure, 0.55mm colour steel with 70mm thick rock wool inside,   colour: white.
Light	Ceiling Lights: 28Units×4Pcs=112Pcs×16W, side   Lights: 60Units×2Pcs=120Pcs×16W, with anti-explosion light, lighting boxes   are powered coated.
Generator cabinet	Inlet from side upper, outlet from back upper,   galvanized steel frame; white coated steel outside, galvanized steel inside,   filled with heat preservation material in the middle.
Intake and Exhaust system	Inlet: 4×11KW turbo fan, power: 11KW for each,   air capacity: 30000m3/h. Anti-explosion motor, with isolator.
	Outlet: 4×11KW turbo fan, power:   11KW for each, air capacity: 30000m3/h. Extra 2pcs axial fan 4kw each,   18000m3/h. Anti-explosion motor. with isolator, with damper.
Heating system	RIELLO RL38 diesel burner, stainless steel heat   exchanger, pneumatic damper for spraying cycle, Max. heating productivity:   380000kcal/h for each. With fire damper.
Purification system	Pre-filter, ceiling filter, fibreglass filter,   carbon filter.
Roof	Rock wool panel 50mm, 0.476 color steel, white   color.
Control system	Spraying, heat spraying, baking, time setting,   lighting switch, failure indicator, temperature controller, power supply   switch, emergency stop, 2 temperature probes, 1 in the spray booth and 1   outside, to display the temperatures on a temperature controller. If the   internal temperature is 10 degrees Celsius higher than the outside   temperature, then the emergency stop will automatically activate, If the   emergency stop is activated, alarm RED light on, blue indicator on when booth   normal used.
Total power	105KW (Power supply 3*380V, 50HZ)
